FasTag ist eine revolutionäre Entwicklung von Thermopatch. FasTag ist besonders dünn und flexibel.
Das Produkt wurde speziell zur Kennzeichnung von persönlicher Kleidung entwickelt, wobei der Schwerpunkt auf Komfort liegt.

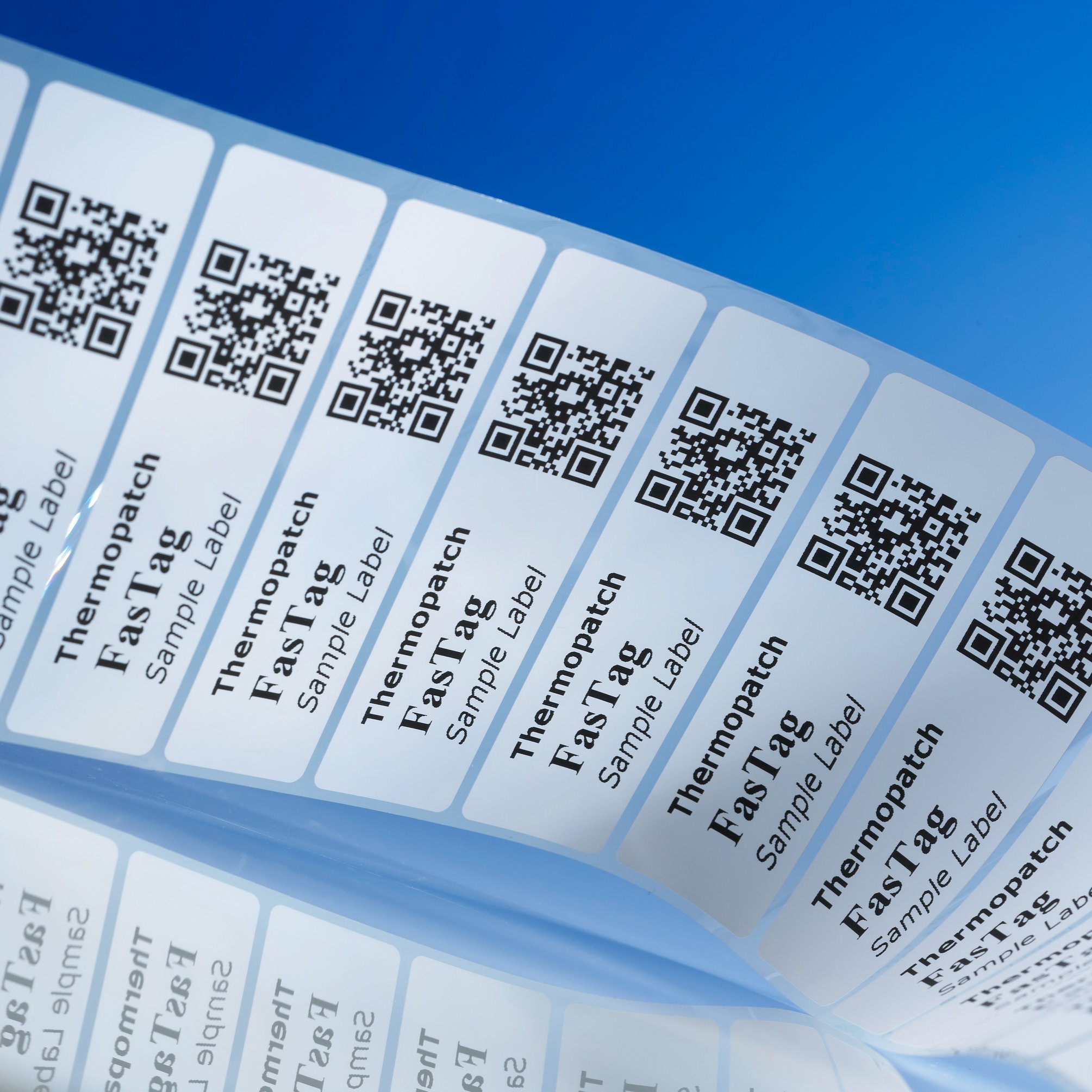

FasTag kann mit jedem gewünschten Logo vorbedruckt werden. HiQ-Drucker können verwendet werden, um einen Namen oder beispielsweise einen (Bar-)Code aufzudrucken. Das mitgelieferte Farbband liefert einen dauerhaften, lesbaren Druck auf dem Band.
FasTag ist bei bis zu 95°C waschbar, darf aber nicht gebügelt werden und ist damit für Flachwäsche ungeeignet.
FasTag | ![]() |
Fastag is compliant with Oekotex 100, class II under certificate 1012046 Centexbel. Colour: White.
Application
Fastag has been especially developed for the labeling of garments in healthcare and personalising garments in nursing homes, elderly homes etc.
Properties
Thin and pliable thermal transfer printable foil, for high temperature application by heat sealing. The labels cannot be removed from the garments but can be easily covered by re-sealing a printed label with new information over of the old one.
Limitations of use
For application to temperature and pressure sensitive textiles, Thermopatch recommends to test the suitability for heat sealing at the advised machine settings.
Physical properties
Sold per package, containing 2 rolls of 50 m of Fastag label tape, a print head cleaning set and 1 inkribbon G7.
Sizes available:
Article code | Dimensions | Nr of Labels | Ink | Core |
FasTag 1706 C4 | 17 x 06 mm | 44.444 | Out | 76 mm |
FasTag 3612 | 36 x 12 mm | 6.560 | Out | 50 mm |
FasTag 4114 | 41 x 14,4 mm | 5.906 | Out | 50 mm |
FasTag 5319 | 53 x 19 mm | 4.592 | Out | 50 mm |
FasTag 6312 | 63 x 12,7 mm | 6.560 | Out | 50 mm |
FasTag 7523 | 75 x 23,4 mm | 3.936 | Out | 50 mm |
FasTag 8423 | 84 x 23,4 mm | 3.936 | Out | 50 mm |
FasTag 8436 | 84 x 36 mm | 2.624 | Out | 50 mm |
FasTag 9048 | 90 x 48 mm | 1.968 | Out | 50 mm |
FasTag30 | 30 mm | Out | 50 mm | |
FasTag40 | 40 mm | Out | 50 mm | |
FasTag50 | 50 mm | Out | 50 mm | |
FasTag60 | 60 mm | Out | 50 mm | |
FasTag70 | 70 mm | Out | 50 mm | |
FasTag80 | 80 mm | Out | 50 mm | |
FasTag90 | 90 mm | Out | 50 mm |
Before sealing
Ensure that the garment is free of lint, dust, dirt and no seams, zipper, buttons etc. are near the place where the heat sealing will be performed.
Remark: Good bonding can be impaired by pre-conditioned fabrics with a dirt or water repellant coating.
Heat seal instructions
Heat seal Fastag at 195 – 204 °C at 15 – 10 seconds at firm pressure on a pneumatic heat seal machine (0,5 kg/cm2 i.e. 3 – 5 bar setting on the machine in most cases) or medium – firm pressure on a manually operated heat seal machine.
Handling and storage
Keep away from oxidizing agents, from strongly alkaline en strongly acid materials. Store in the original packing, out of direct sunlight, in a cool and dry place.
