NL-24 Pro

From labels to emblems, from repair patches to transfers; the versatile NL-24 can handle virtually anything. Fast and sustainable.

I am interested in this product
Products NL-24 Pro ×

Product Data Sheet

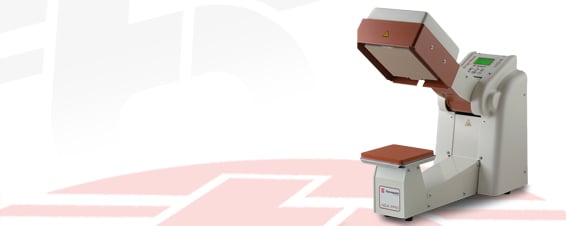

The NL-24 Pro is one of Thermopatch’s most practical heatseal machines. With a design aimed at the demanding user: thanks to the extra workspace around the lower platen a heatseal job with large or thicker garments can be processed smoothly.

The machine is operated with a foot pedal. In use both hands are free, which facilitates the work. The integrated graphical display is easy to operate. Features such as press time and temperature can be entered quickly. The machine is equipped with an energy-saving mode and emergency stop.

Product Data Sheet

Power supply (Volt) 230
Power consumption maximum (Watt) 800
Temperature range (°C) 0 – 230
Timer (Sec-) 3 – 60
Dimensions HxWxD maximum (Millimetres) 555 x 225 x 495
Weight (Kilogram) 20
Sealing platen (Millimetres) 140 x 140
Noise level (Decibel) < 70
Air pressure range (Bar) 4 – 6
Usage litres per cycle @5 Bar 2,80
Shipping weight (Kilogram) 25,5
Shipping dimensions HxWxD (Millimetres) 650 x 320 x 580
Certification CE

Highlights

  • suitable for various applications
  • works easily and quickly
  • user-friendly control panel
  • including foot pedal
