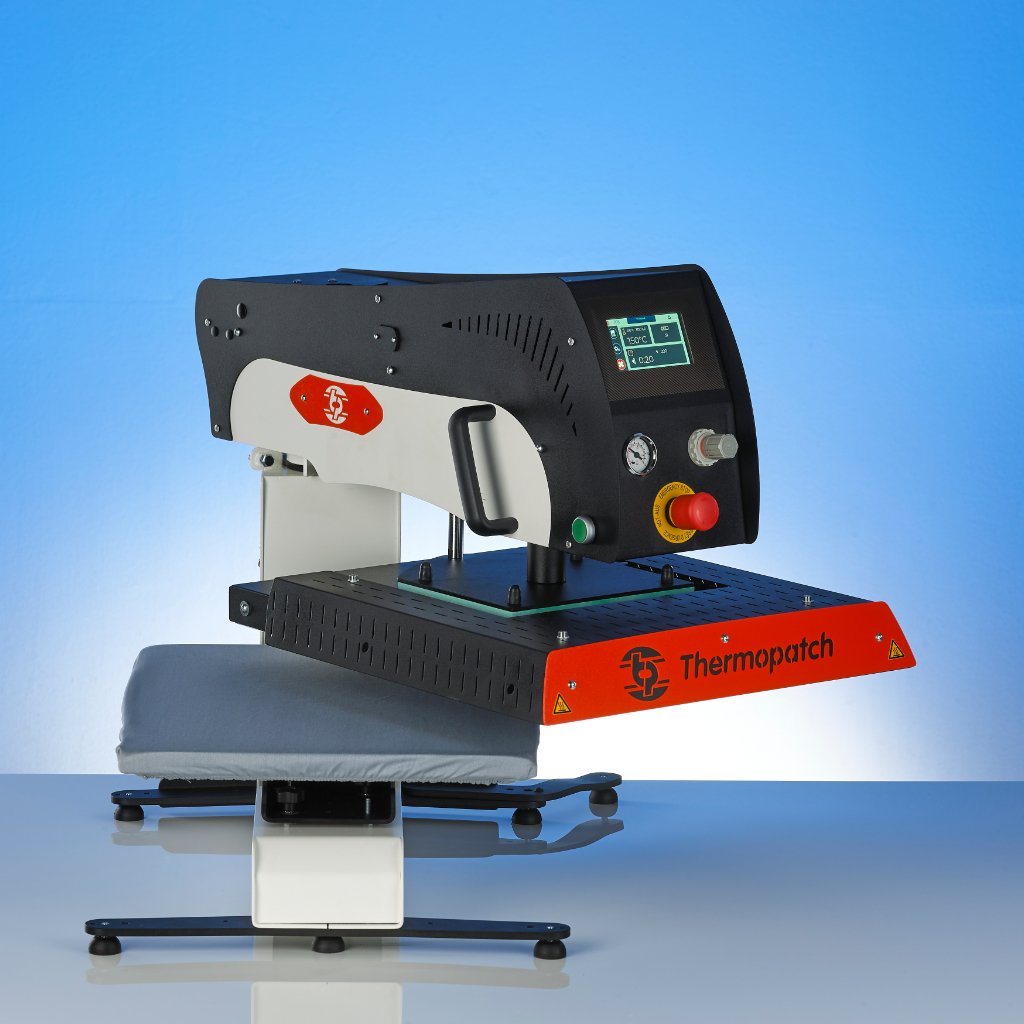

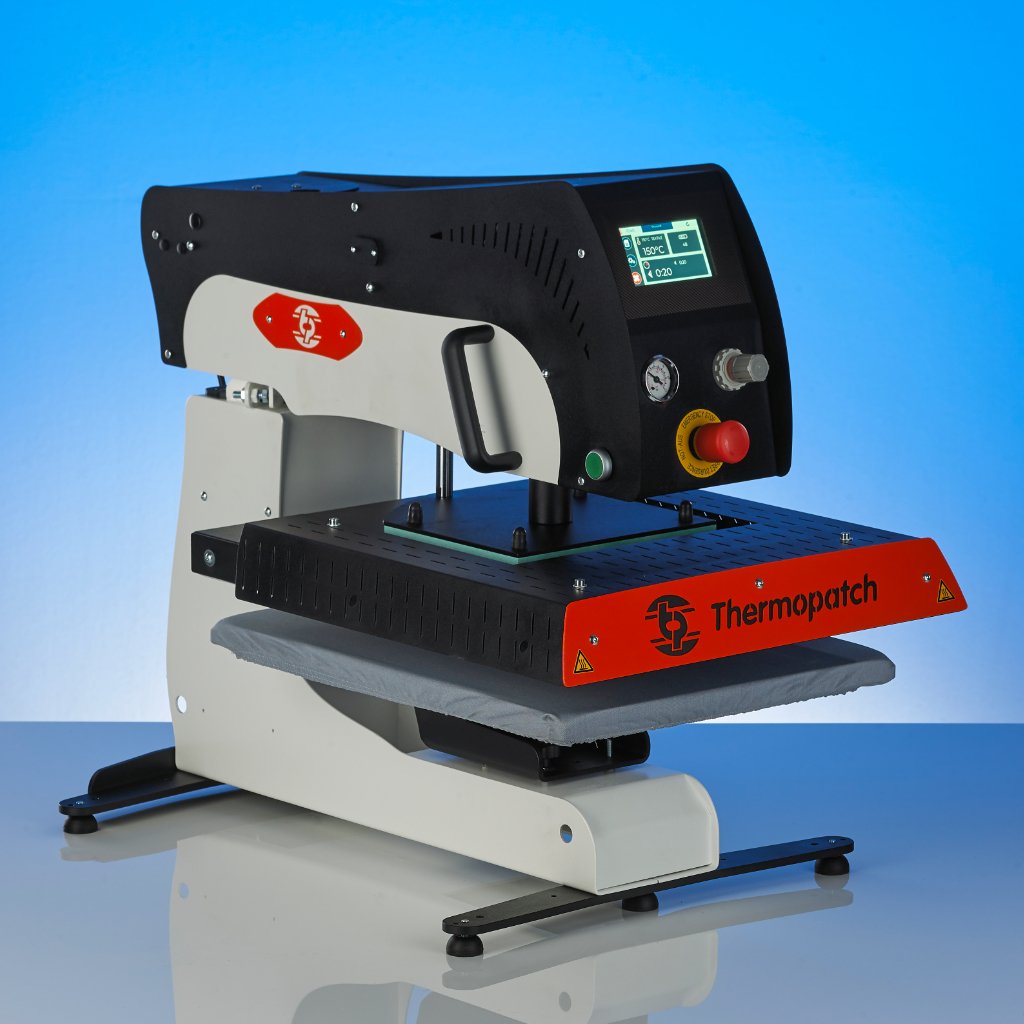

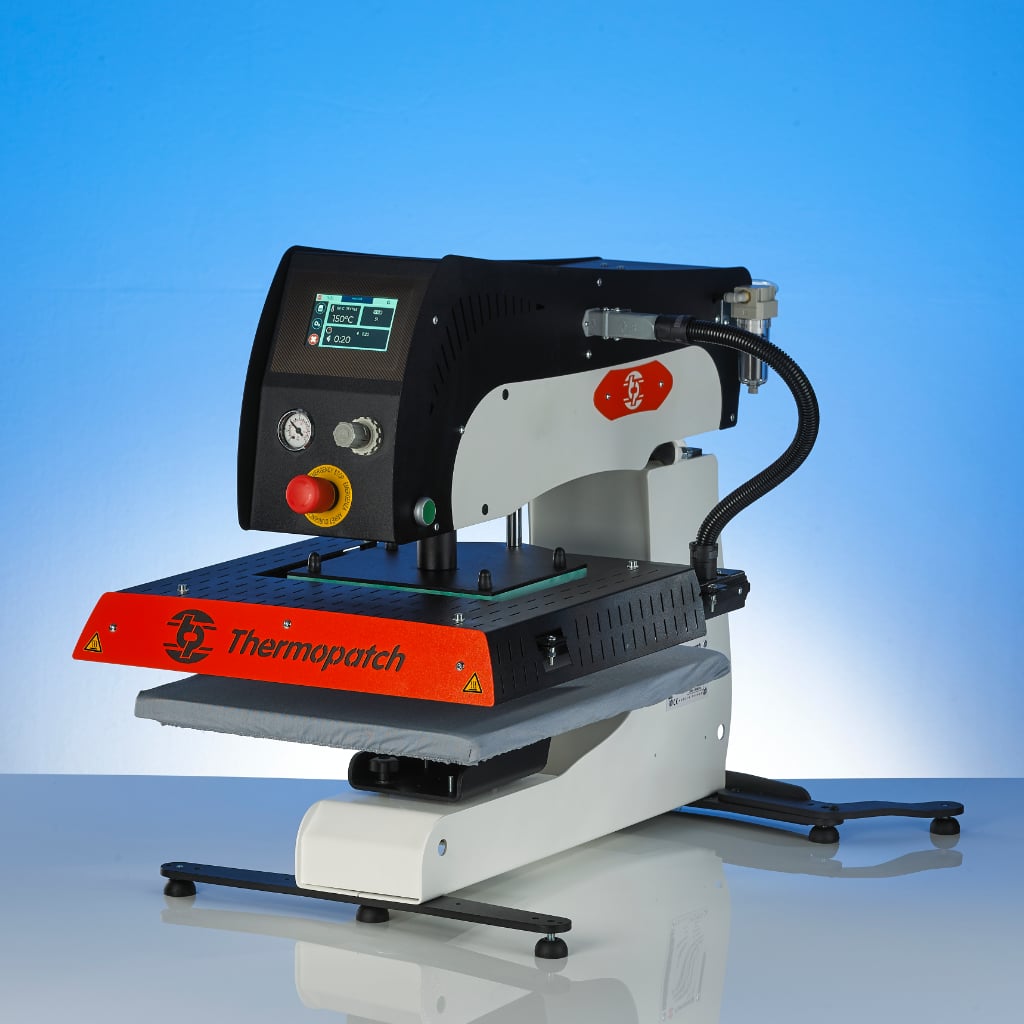

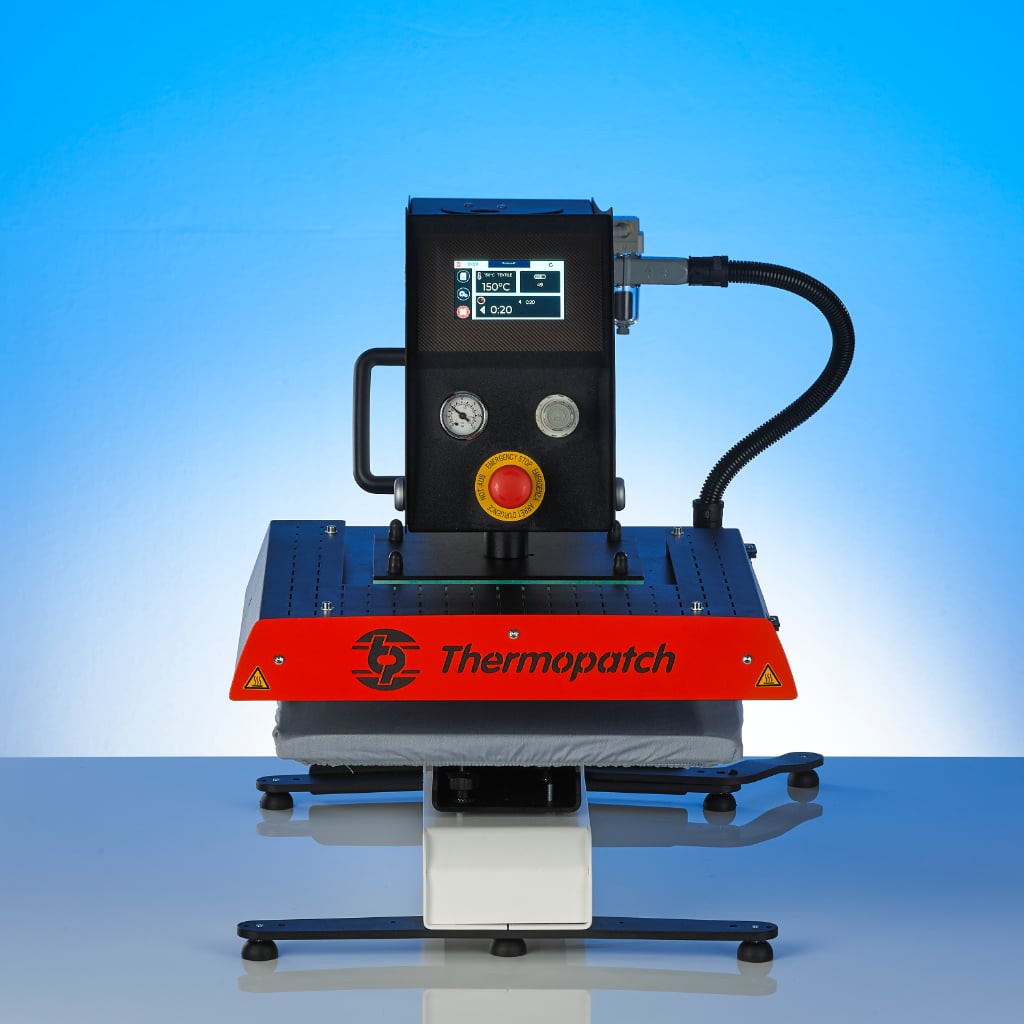

NL-35

配有大型压盘的气动热压印机。
NL-35适合几乎所有工作。

我对此产品感兴趣
产品 NL-35 ×

产品数据表

Nl-35包括一个大型热压区(40 x 50 cm)。 这种机器的另一个优势是其先进的电子元件可以实现五种程序预设。 因此,可在不同类型的转印或徽章之间快速切换。 NL-35还有一个计时器,用于指示热压循环次数。

产品数据表

NL-35
Power supply (Volt) 230
Energy consumption during heating up (Watt) 2500
Temperature adjustable up to 220 ° C (+/- 1%)
Height (opened, mm) 621
Width
 (mm) 572
Depth (with connections, mm) 847
Dimensions of press cushion (mm) 400 x 500
Fuses 2 x T 16A 250 V
A-weighted sound pressure <70 dB (A)
Usage liters per cycle @5 Bar 4,71
Weight (Kilogram) 82
Shipping weight (Kilogram) 106
Pre-pressure > 3 bar – <8 bar
Maximum pressing force 628 DaN at 8 bar
Certification CE
  • 可选附件为:
    • 激光指示器
    • 压盘组
      • 12 x 8 cm
      • 15 x 15 cm
      • 12 x 42 cm
      • 25 x 30 cm
    • 鞋靴用压盘
    • 工作台,重型金属
    • 下压盘的Nomex盖

如需查看此型号的备用件概览,请点击下方按钮。
查看备用件

亮点

  • 气动热压印机
  • 出色性能
  • 3种可编程设置
  • 易于操作
